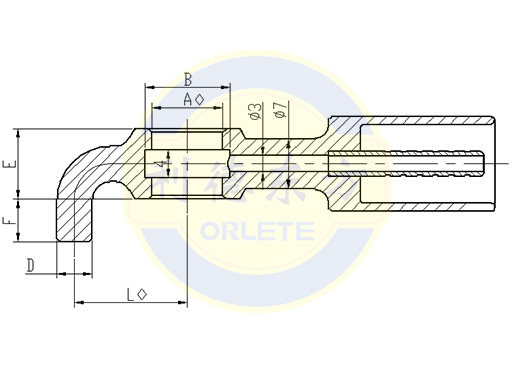

Plane sealing joint fitting (non welded type with locating pin)

Parameter

Mark Requirement Size(mm) Tolerance(mm)
prefer size selected size
A Determined according to the hole diameter of the mating part φ10 0~+0.2
B Determined according to the oil flow φ12 φ11 ±0.2
D Determined by strength φ5 / -0.2~0
E Determined according to assembly requirements 10 8 ±0.2
F according to assembly requirements 6.5 5 ±0.5
L according to pipeline assembly requirements 17 16 ±0.3
