Apply in power steering system inlet line of various car,multi-function business car,light truck etc.
EMAIL:
info@orlete.comphone:

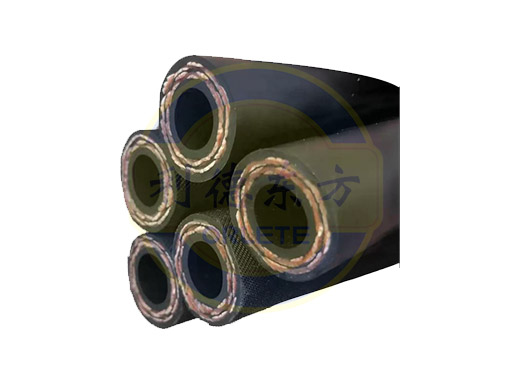

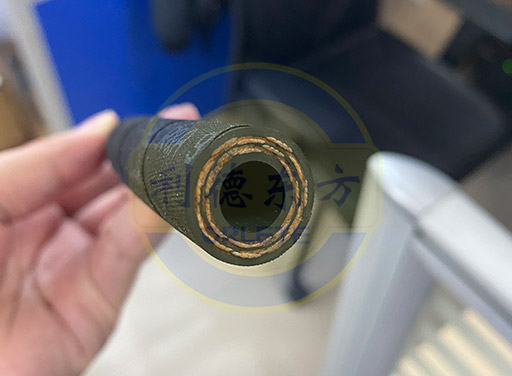

8613645184293Construction:
Tube: Oil resistance synthetic rubber (CSM)
Reinforcement:high tensile fiber braided,high tensile fiber wire braided
Cover:Synthetic rubber with excellent aging resistance and weather ability(CPE/CSM)
Surface treatment:Smooth surface and cloth wrapped.
Characteristic:
1.Reduce noise
2.Decrease viabration
3.Resistance to high pressure, Impulse & ozene
Temperature: -40℃ (-40 ℉ )to +250℃ (+250 ℉ )
|
No. |
I.D |
O.D |
W.P |
B.P |
||||||
|
inch |
mm |
Tolerance (mm) |
inch |
mm |
Tolerance (mm) |
Bar |
PSI |
Bar |
PSI |
|
|
1 |
1/8 |
3.2 |
±0.3 |
23/64 |
9 |
±0.3 |
20 |
300 |
80 |
1200 |
|
2 |
1/4 |
6.3 |
±0.3 |
1/2 |
12.7 |
±0.4 |
20 |
300 |
80 |
1200 |
|
3 |
3/8 |
9.5 |
±0.4 |
5/8 |
16 |
±0.5 |
20 |
300 |
80 |
1200 |
|
4 |
1/2 |
12.7 |
±0.5 |
25/32 |
20 |
±0.6 |
20 |
300 |
80 |
1200 |
|
5 |
5/8 |
16 |
±0.5 |
61/64 |
24 |
±0.6 |
10 |
150 |
40 |
600 |
|
6 |
1 |
25.4 |
±0.8 |
1-3/8 |
35 |
±1 |
10 |
150 |
40 |
600 |
