Four-Layer Structure Air Conditioning Hose

Application:

Applied to hose assembly for aoto or industry air conditioning system.

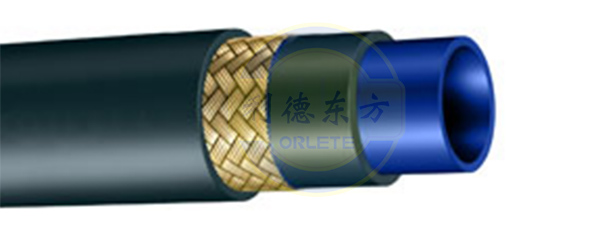

Structure:Nylon barrier layer/EPDM/PET/EPDM

Medium:HFC-134a;HFO-1234yf;

Temperature:-40℃~+125℃

Standard:QC/T664-2000、SAE J3062-2015、SAE J2064-2015

Appearance : Smooth or wrapped

Parameter

TYPE I.O
mm
D.O
mm
Max W.P
MPa
Min B.P
MPa

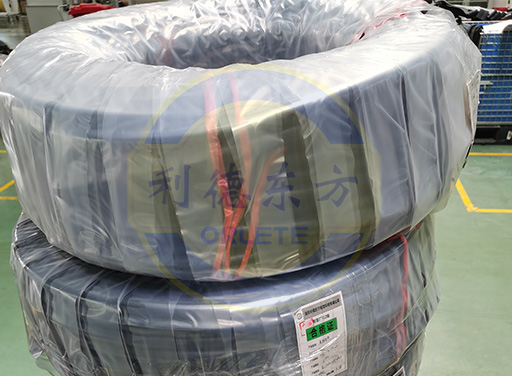

Package length
m
KG0815 8.2 15.2 3.5 14.7 100
KG1018 10.3 18.5 3.5 14.7 100
KG1119 11.2 19.5 3.5 14.7 100
KG1320 13.1 20.2 3.5 14.7 100
KG1623 15.8 23.5 3.5 12 100
KG1928 19 28 1.5 12 50
KG2232 22.2 32 3.5 12 50
