Low pressure lines, return lines
Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water.
EMAIL:
info@orlete.comphone:
8613645184293INSERT: SHF TYPE
TUBE: OIL RESISTANT SYNTHETIC RUBBER
REINFORCEMENT: ONE HIGH RESISTANCE TEXTILE BRAID
COVER: ENVIRONMENT RESISTANT SYNTHETIC RUBBER
APPLICABLE SPECS: EN 854 2TE - ISO 4079-1 2TE

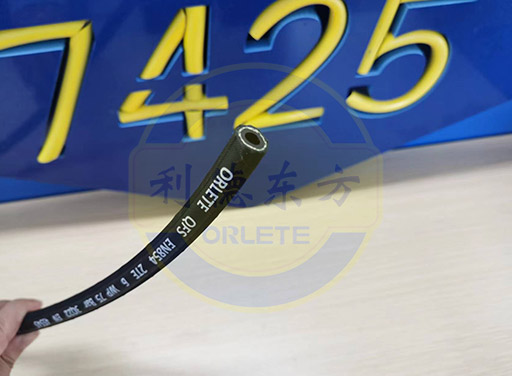

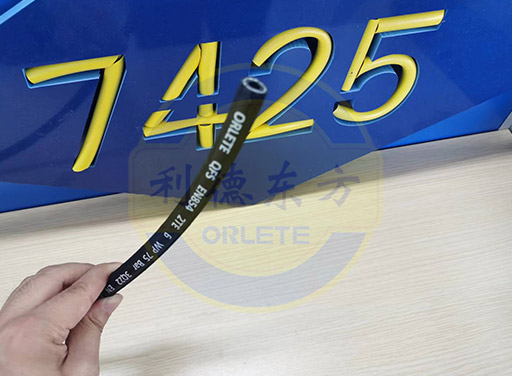

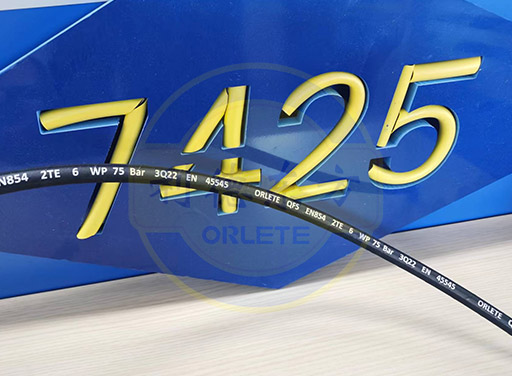

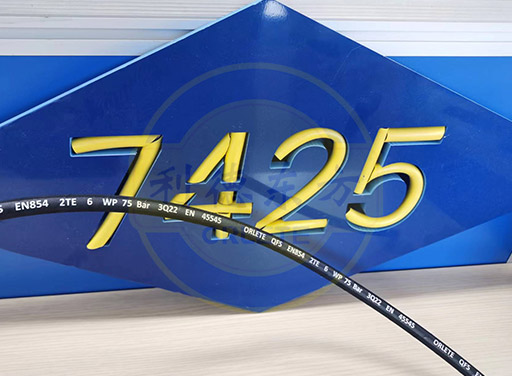

HOSE MARKING:ORLETE QFS EN854 2TE 6 WP 75 Bar 3Q22 EN45545
CONTINUOUS SERVICE TEMPERATURE RANGE: -40°F / +257°F; -40°C / +125°C
| ORLETE | HOSE SIZE I.D | R.O.D | O.D | MAX W.P | MIN B.P | MIN B.R | W.T | ||||
| PART.REF. | DN | dash | inch | mm | mm | bar | psi | bar | psi | mm | Kg/m |
| TB 2TE 6 | 6 | -4 | 1/4" | - | 13 | 75 | 1080 | 300 | 4350 | 40 | 0.13 |
| TB 2TE 8 | 8 | -5 | 5/16" | - | 15.2 | 68 | 980 | 272 | 3940 | 50 | 0.15 |
| TB 2TE 10 | 10 | -6 | 3/8" | - | 17 | 63 | 910 | 252 | 3650 | 60 | 0.18 |
| TB 2TE 12 | 12 | -8 | 1/2" | - | 20.3 | 58 | 840 | 232 | 3360 | 70 | 0.22 |
| TB 2TE 16 | 16 | -10 | 5/8" | - | 24.3 | 50 | 720 | 200 | 2900 | 90 | 0.29 |
| TB 2TE 19 | 19 | -12 | 3/4" | - | 27.1 | 45 | 650 | 180 | 2610 | 110 | 0.37 |
| TB 2TE 25 | 25 | -16 | 1" | - | 35.3 | 40 | 580 | 160 | 2320 | 130 | 0.53 |
| TB 2TE 31 | 31 | -20 | 1.1/4" | - | 43.5 | 35 | 500 | 140 | 2030 | 140 | 0.7 |
